       # DIAMOND FLOWER, INC.

          VG-5600/VG-5600H

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              ET4000
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                16-bit ISA
          Memory Type                  DRAM
          Maximum Onboard Memory       1024KB

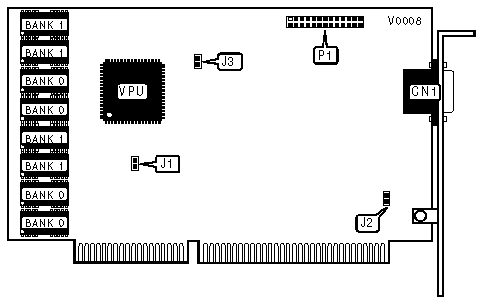

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose        | Location |   Purpose    | Location |
          |-----------------------+----------+--------------+----------|
          | 15-pin analog video   |   CN1    | VESA Feature |    P1    |
          | port                  |          | port         |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |            IRQ 2/9              |            J2            |
          |---------------------------------+--------------------------|
          | » |          Disabled           |           Open           |
          |---+-----------------------------+--------------------------|
          |   |           Enabled           |          Closed          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    WAIT STATE SELECTION                    |
          |------------------------------------------------------------|
          |                Setting                |         J3         |
          |---------------------------------------+--------------------|
          | » |  1 wait state (normal operation)  | Pins 2 & 3 closed  |
          |---+-----------------------------------+--------------------|
          |   | 0 wait state (enhanced operation) | Pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             FACTORY CONFIGURED - DO NOT ALTER              |
          |------------------------------------------------------------|
          |           Jumper           |           Position            |
          |----------------------------+-------------------------------|
          |             J1             |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      512KB       |     (4) 44256      |        NONE        |
          |------------------+--------------------+--------------------|
          |      1024KB      |     (4) 44256      |     (4) 44256      |
          +------------------------------------------------------------+
