# DIAMOND FLOWER, INC.
MG-150 MONOGRAPHICS CARD
Category Graphics/printer card
Video Types Supported Monochrome
Video Processor N/A
Highest Resolution Supported 640 x 200
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB

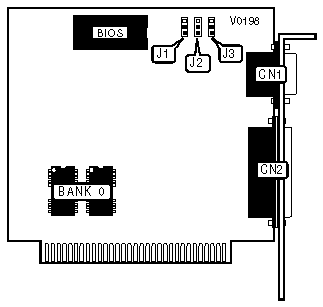

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| 15-pin analog video | CN1 | Parallel port | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION |
|------------------------------------------------------------|
| Type | J3 |
|----------------------------+-------------------------------|
| » | Monochrome | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Color | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT SELECTION |
|------------------------------------------------------------|
| Setting | J1 | J2 |
|------------------+--------------------+--------------------|
| » | Primary | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Secondary | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
