# DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH 32 (VLB VER.)
Category Video
Video Types Supported XVGA
Video Processor ET4000/W32P
Highest Resolution Supported 1280 X 1024
Data Bus Type VESA local bus
Memory Type DRAM
Maximum Onboard Memory 2MB

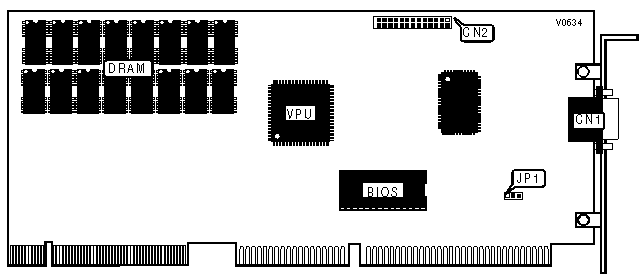

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ2 | JP1 |
|----------------------------+-------------------------------|
| ยป | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
