# DIAMOND MULTIMEDIA SYSTEMS, INC.
SPEEDSTAR PRO (VER.2)
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 1280 x 1024
Maximum Video Memory Unidentified
Data Bus 16-bit ISA
Video Types Supported XVGA

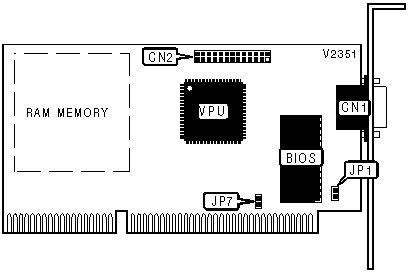

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | IRQ 2/9 enabled | JP1 | Closed |
|---+------------------------------------+-------+-----------|
| | IRQ 2/9 disabled | JP1 | Open |
|---+------------------------------------+-------+-----------|
| » | Zero wait state enabled | JP7 | Closed |
|---+------------------------------------+-------+-----------|
| | Zero wait state disabled | JP7 | Open |
+------------------------------------------------------------+
