# CARDEXPERT TECHNOLOGY, INC.
CIRRUS GD5440 (VER.1.1A)
Card Type Video card
Video Chip Set Cirrus Logic GD5440
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA

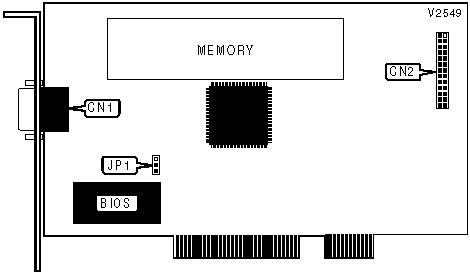

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| ยป | IRQ2 disabled | JP1 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| | IRQ2 enabled | JP1 | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Note: The location, chip size and configuration of |
| the DRAM is unidentified. |
+------------------------------------------------------------+
