# DIAMOND MULTIMEDIA SYSTEMS, INC.
FIRE GL 2000
Card Type Graphics adapter
Video Chip Set 3DLabs
Maximum Video Memory 8MB VRAM, 16MB DRAM
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

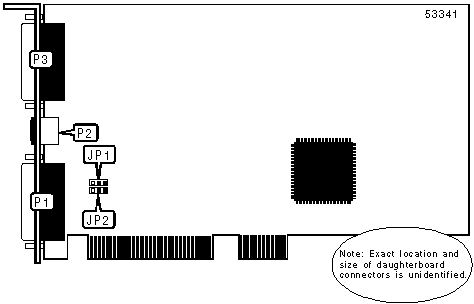

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| » | 15-pin analog | P1 | 15-pin analog video | P3 |
| | video port | | port (secondary) | |
| | (primary) | | | |
|---+---------------+-------+------------------------+-------|
| | VGA input - | P2 | | |
| | external | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------------+-------+-------------|
| » | Windows compatibility - enabled | JP1 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+-------+-------------|
| | Windows compatibility - disabled | JP1 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+-------+-------------|
| » | On-board VGA - enabled | JP2 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+-------+-------------|
| | On-board VGA - disabled | JP2 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY UPGRADE CONFIGURATION |
|------------------------------------------------------------|
| Total | DISPLAY/VRAM | Z-BUFFER/EDO DRAM |
|-------------+-------------------+--------------------------|
| 16MB | 8MB | 8MB |
|-------------+-------------------+--------------------------|
| 24MB | 8MB | 16MB |
|------------------------------------------------------------|
| Note: The Fire GL 2000 can be upgraded with memory |
| Upgrade Modules for 8MB of VRAM and 8MB/16MB of EDO |
| DRAM as shown above. These modules are installed |
| piggyback onto the Fire GL 2000 board. |
+------------------------------------------------------------+
