# EVEREX SYSTEMS, INC.
MAXLOGIC EV-698
Category Video
Video Types Supported XVGA
Video Processor TVGA9000A
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512KB

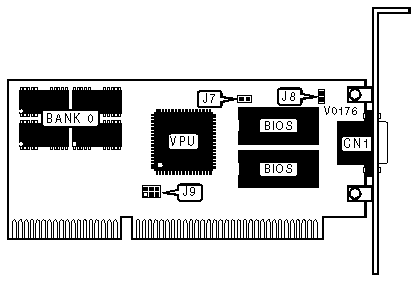

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|--------------------------------------+---------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCANNING RATE SELECTION |
|------------------------------------------------------------|
| Rate | J7 |
|--------------------------------+---------------------------|
| » | High | Open |
|-----+--------------------------+---------------------------|
| | Low | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS WIDTH AUTODETECT SELECTION |
|------------------------------------------------------------|
| Setting | Size | J8 | J9 |
|-------------------+-------------+-------------+------------|
| » | Enabled | 16-bit | Open | Open |
|---+---------------+-------------+-------------+------------|
| | Disabled | 8-bit | Closed | Closed |
+------------------------------------------------------------+
