# ESCOM AG
VGA-CARD
Category Video
Video Types Supported XVGA
Video Processor Trident TVGA9000
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512KB

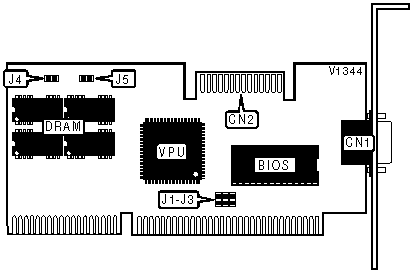

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCAN RATE CONFIGURATION |
|------------------------------------------------------------|
| Rate | J5 |
|----------------------------------+-------------------------|
| » | < 48.7KHz | Closed |
|----+-----------------------------+-------------------------|
| | ³ 48.7KHz | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTODETECT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J4 |
|---------------------------------+--------------------------|
| » | Enabled | Open |
|----+----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS TYPE SELECTION |
|------------------------------------------------------------|
| Type | J1 | J2 | J3 |
|------------------+-------------+-------------+-------------|
| » | 16-bit | Open | Open | Open |
|---+--------------+-------------+-------------+-------------|
| | 8-bit | Closed | Closed | Closed |
+------------------------------------------------------------+
