# GENOA SYSTEMS CORPORATION
WINDOWS VGA 64 8534 (VESA)
Card Type Graphics Accelerator Card
Video Chip Set Unidentified
Maximum Video Memory 2MB DRAM
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024
I/O Options VGA feature connector, VGA port
Data Bus 32-bit VESA Local Bus

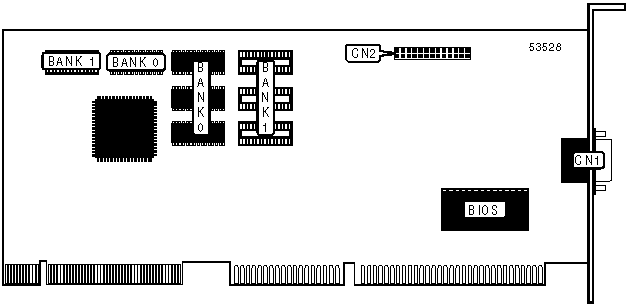

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+-----------------------+-----------------------|
| 1MB | (4) 256KB | None |
|------------+-----------------------+-----------------------|
| 2MB | (4) 256KB | (4) 256KB |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| The IRQ9 jumper is factory configured open (disabled). The |
| location is unidentified. |
+------------------------------------------------------------+
