# ELSA, INC.
GLORIA-L/MX
Card Type Video card
Video Chip Set S3
Maximum Video Memory 8MB VRAM, 16MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported 1920 x 1080
Data Bus 32-bit PCI

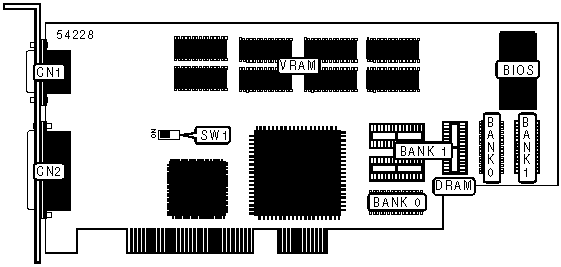

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------+-------+----------------------------+-------|
| 15-pin analog | CN1 | 15-pin video passthrough | CN2 |
| video port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| VGA adapter enabled | SW1 | Off |
|----------------------------------------+-------+-----------|
| VGA adapter disabled | SW1 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+---------------------+-------------------|
| 8MB | (2) 4MB | None |
|------------------+---------------------+-------------------|
| 16MB | (2) 4MB | (4) 2MB |
+------------------------------------------------------------+
