# JATON CORPORATION
JAX 8241
Category Video
Video Types Supported XVGA
Video Processor 1280 x 1024
Highest Resolution Supported S3/805
Data Bus Type 32-bit VESA Local Bus
Memory Type DRAM
Maximum Onboard Memory 2MB

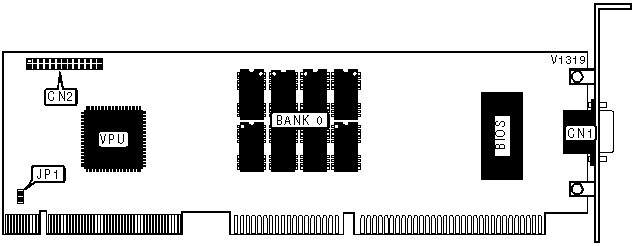

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Memory | Bank 0 | Bank 1 |
|------------------+-----------------------+-----------------|
| 1MB | (8) 256K x 4 | None |
|------------------+-----------------------+-----------------|
| 2MB | (8) 256K x 4 | 1024K |
|------------------------------------------------------------|
| Note: Exact location & chip size of Bank 1 is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|-----------------------------+------------------------------|
| JP1 | N/A |
+------------------------------------------------------------+
