# LASONIC ELECTRONICS CORPORATION
LSO-320W
Card Type Sound card
Chip Set Lxycon
Maximum Onboard N/A
Memory
I/O Options CD-ROM audio, CD-ROM interface (4), game/MIDI
port, line in, microphone/line out, microphone
in, PC Buzzer, speaker out
Data Bus 16-bit ISA

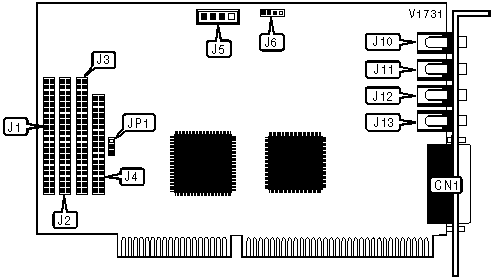

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | CN1 | PC Buzzer connector | J6 |
|----------------------+-------+---------------------+-------|
| Panasonic CD-ROM | J1 | Speaker out | J10 |
| interface | | | |
|----------------------+-------+---------------------+-------|
| IDE CD-ROM interface | J2 | Mic/line out | J11 |
|----------------------+-------+---------------------+-------|
| Mitsumi CD-ROM | J3 | Line in | J12 |
| interface | | | |
|----------------------+-------+---------------------+-------|
| Sony CD-ROM | J4 | Mic in | J13 |
| interface | | | |
|----------------------+-------+---------------------+-------|
| CD-ROM - audio in | J5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------------+----------+----------|
| IDE, Panasonic or Sony CD-ROM | JP1/pins | Closed |
| interface in use | 1 & 2 | |
|--------------------------------------+----------+----------|
| Mitsumi CD-ROM interface in use | JP1/pins | Closed |
| | 2 & 3 | |
+------------------------------------------------------------+
