# IBM CORPORATION
EASY OPTIONS VC555
Card Type Video card
Video Chip Set Cirrus Logic, Inc.
Highest Resolution 1280 x 1024
Supported
Maximum Video 1MB RAM (Exact configuration is
Memory unidentified)
Data Bus 16-bit ISA
Video Types XVGA
Supported

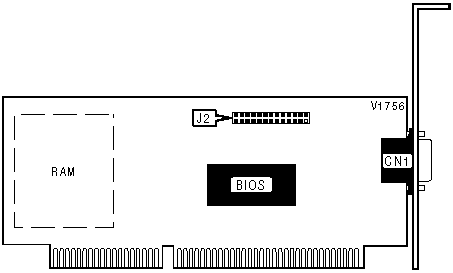

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | J2 |
| port | | | |
+------------------------------------------------------------+
