# LEADTEK RESEARCH, INC.
WINFAST T230 W32P
Card Type Video card
Video Chip Set Tseng Labs ET4000/W32 & ET4000/V33
Highest Resolution 1280 x 1024
Supported
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA

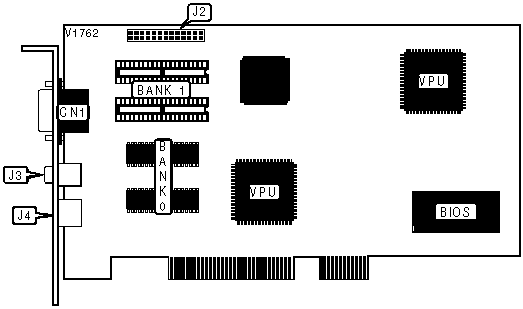

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 15-pin analog video | CN1 | Composite video in | J3 |
| port | | | |
|-----------------------+-------+--------------------+-------|
| VGA feature connector | J2 | S-video in | J4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| PCI INT | ISA IRQ | JP7 |
|------------------+-----------------+-----------------------|
| INTA | IRQ 2/9 | Pins 1 & 2 closed |
|------------------+-----------------+-----------------------|
| INTB | IRQ 2/9 | Pins 4 & 6 closed |
|------------------+-----------------+-----------------------|
| INTC | IRQ 2/9 | Pins 5 & 6 closed |
|------------------------------------------------------------|
| Note: The exact location & orientation of JP7 is |
| unidentified. |
+------------------------------------------------------------+
