# LEADTEK RESEARCH, INC.
WINFAST S250V+
Card Type Video card
Video Chip Set S3, Inc. Trio 64V+
Highest Resolution Supported 1600 x 1200
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

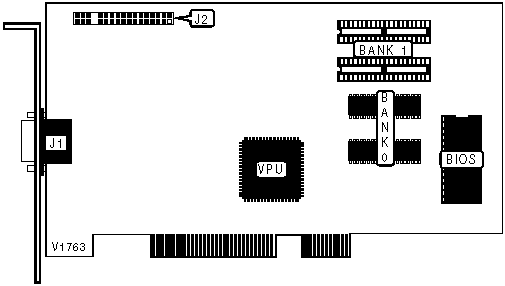

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | J1 | Local Peripheral Bus | J2 |
| port | | VESA feature | |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
