# LEADTEK RESEARCH, INC.
TV PLUS 3000
Card Type TV card
Video Chip Set Philips
Chip Set Aurora Vision VxP202
Highest Resolution Supported 800 x 600
Maximum Video Memory N/A
Data Bus 16-bit ISA
Video Types Supported XVGA

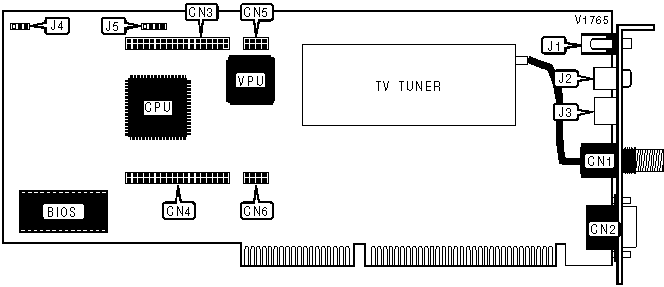

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| TV Tuner | CN1 | Audio out | J1 |
|----------------------+-------+---------------------+-------|
| VGA in/out | CN2 | Composite video in | J2 |
|----------------------+-------+---------------------+-------|
| 36-pin daughter | CN3 | S-video | J3 |
| board connector | | | |
|----------------------+-------+---------------------+-------|
| 36-pin daughter | CN4 | Sensor connector | J4 |
| board connector | | | |
|----------------------+-------+---------------------+-------|
| 4-pin daughter board | CN5 | Internal audio line | J5 |
| connector | | out | |
|----------------------+-------+---------------------+-------|
| 4-pin daughter board | CN6 | | |
| connector | | | |
+------------------------------------------------------------+
