# KOUWELL ELECTRONIC CORPORATION
KW-549AV
Card Type Video card
Video Chip Set S3
Maximum Video Memory 2MB
Data Bus 32-bit PCI
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200

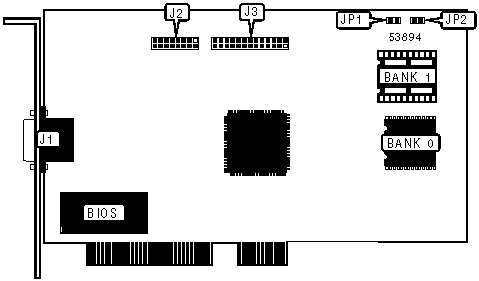

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin video analog | J1 | Feature connector | J3 |
| video port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured – do not | J2 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------+----------------------+----------------------|
| 1MB | (2) 256K x 16 | None |
|--------------+----------------------+----------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Type | JP1 | JP2 |
|--------------------+-------------------+-------------------|
| EDO | Closed | Closed |
|--------------------+-------------------+-------------------|
| Fast Page | Open | Open |
+------------------------------------------------------------+
