# KOUWELL ELECTRONIC CORPORATION
KW-546
Card Type Video card
Video Chip Set ET
Maximum Video Memory 4MB
Data Bus 32-bit PCI
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200

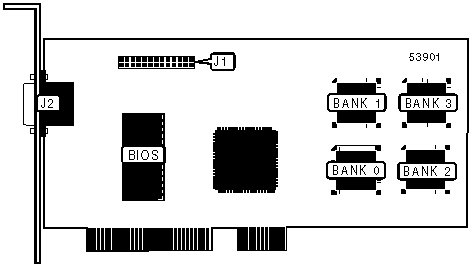

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Feature connector | J1 | 15-pin video analog | J2 |
| | | video port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------------+------------+-----------+-----------+----------|
| 1MB | MD908 | None | None | None |
|------------+------------+-----------+-----------+----------|
| 2MB | MD908 | MD908 | None | None |
|------------+------------+-----------+-----------+----------|
| 2.25MB | MD909 | MD909 | None | None |
|------------+------------+-----------+-----------+----------|
| 2.5MB | MD910 | MD910 | None | None |
|------------+------------+-----------+-----------+----------|
| 4MB | MD908 | MD908 | MD908 | MD908 |
|------------------------------------------------------------|
| Note: MD908 = 1MB. MD909 = 1.125MB. MD910 = 1.25MB. |
+------------------------------------------------------------+
