# LEADTEK RESEARCH, INC.
WINFAST 3D L2520
Card Type Video accelerator
Video Chip Set 3D Labs
Maximum Video Memory 8MB VRAM , 16MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit PCI

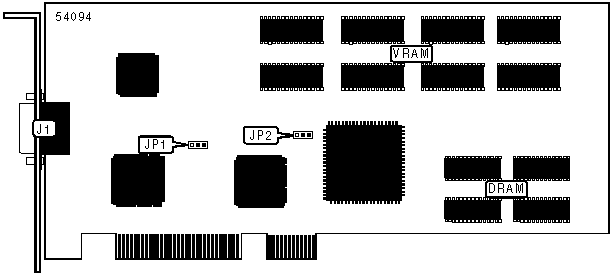

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|------------------------------------------+-----------------|
| 15-pin analog video port | J1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------+-------+------------------|
| PCI class 2.1 | JP1 | Pins 1 & 2 |
| | | closed |
|---------------------------------+-------+------------------|
| PCI class 2.0 | JP1 | Pins 2 & 3 |
| | | closed |
|---------------------------------+-------+------------------|
| External VGA connection enabled | JP2 | Pins 1 & 2 |
| | | closed |
|---------------------------------+-------+------------------|
| Internal VGA connection enabled | JP2 | Pins 2 & 3 |
| | | closed |
+------------------------------------------------------------+
