# I2M (International interactive media)
Mediaplayback FOR MACINTOSH (VER. 2.0.2)
Card Type Video capture/sound card
Video Chip Set Motorola
Maximum Video Memory Unidentified
Video Types Supported VGA, XVGA
Highest Resolution Supported 640 x 480
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

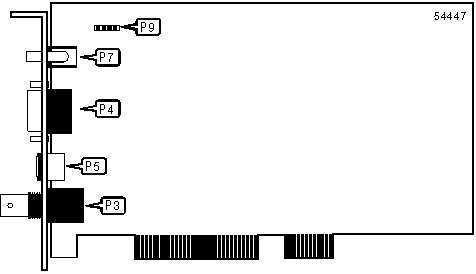

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| RG-58A/U connector | P3 | Speaker out | P7 |
|------------------------+-------+-------------------+-------|
| 15-pin high density | P4 | Audio in - CD-ROM | P9 |
| connector | | | |
|------------------------+-------+-------------------+-------|
| 8-pin Mini-DIN | P5 | | |
| connector | | | |
+------------------------------------------------------------+
