ART-200 TURBO
Card Type Video Card
Video Chip Set Macronix
Maximum Video Memory 2MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported 1280 x 1024
Data Bus 32 bit PCI
IMG IMG 1
+------------------------------------------------------------+

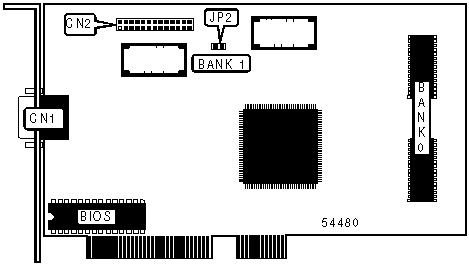

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| Fast Page DRAM selection | JP2 | Closed |
|----------------------------------------+-------+-----------|
| EDO DRAM selection | JP2 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (EDO DRAM) |
|------------------------------------------------------------|
| Size | Bank0 | Bank1 |
|------------------+--------------------+--------------------|
| 1MB | 256KB x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | 256KB x 16 | 256KB x 16 |
+------------------------------------------------------------+
