# KADATCO CO,. LTD.
ART-685
Card Type Video Card
Video Chip Set Trident
Maximum Video Memory 2MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
Data Bus 32 bit PCI
IMG IMG 1
+------------------------------------------------------------+

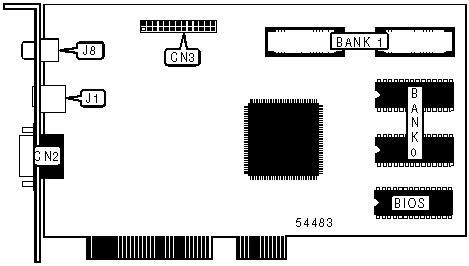

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 15-pin analog video | CN2 | S-video in | J1 |
| port | | | |
|-----------------------+-------+--------------------+-------|
| Feature connector | CN3 | Composite video in | J8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (EDO DRAM) |
|------------------------------------------------------------|
| Size | Bank0 | Bank1 |
|------------------+--------------------+--------------------|
| 1MB | 256KB x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | 256KB x 16 | 256KB x 16 |
+------------------------------------------------------------+
