WINFAST 3D L3100
Card Type Video Card
Video Chip Set 3D Labs
Maximum Video Memory 16MB VRAM, 80MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit AGP

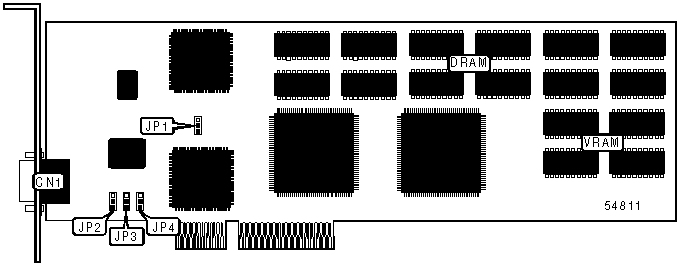

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | |
|------------------------------+-------------------------+---|
| 15-pin analog video port | CN1 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| On-board VGA enabled | JP1 | Pins 1 & 2 |
| | | closed |
|---------------------------------------+-------+------------|
| On-board VGA disabled | JP1 | Pins 2 & 3 |
| | | closed |
|---------------------------------------+-------+------------|
| » AGP, Class code: 030000 | JP2 | Pins 1 & 2 |
| (VGA-compatible controller) | | closed |
|---------------------------------------+-------+------------|
| AGP, Class code: 000100h | JP2 | Pins 2 & 3 |
| (VGA-compatible device) | | closed |
|---------------------------------------+-------+------------|
| » VGA enabled | JP3 | Pins 1 & 2 |
| | | closed |
|---------------------------------------+-------+------------|
| VGA disabled | JP3 | Pins 2 & 3 |
| | | closed |
|---------------------------------------+-------+------------|
| » VGA fixed addressing enabled | JP4 | Pins 1 & 2 |
| | | closed |
|---------------------------------------+-------+------------|
| VGA fixed addressing disabled | JP4 | Pins 2 & 3 |
| | | closed |
+------------------------------------------------------------+
