# LEADTEK RESEARCH, INC.
WINFAST 3D S800 PCI
Card Type Video card
Video Chip Set Mpact
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

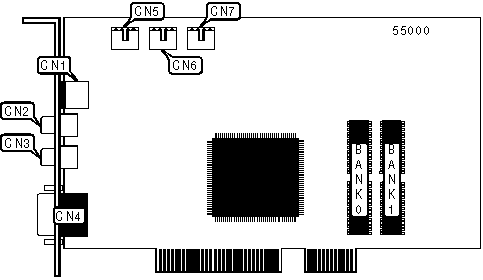

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| S-Video out | CN1 | Auxiliary audio in | CN5 |
|----------------------+-------+---------------------+-------|
| Composite video out | CN2 | Audio in - CD-ROM | CN6 |
|----------------------+-------+---------------------+-------|
| SPDIF out | CN3 | Audio out | CN7 |
|----------------------+-------+---------------------+-------|
| VGA port | CN4 | | |
+------------------------------------------------------------+
