# MICRO-STAR INTERNATIONAL, INC.
MS-4401 PCI VGA CARD
Category Video
Video Types Supported XVGA
Video Processor Advanced Logic
Highest Resolution Supported 1280 x 1024
Data Bus Type PCI bus
Memory Type DRAM
Maximum Onboard Memory 2048KB
IMG IMG 1
+------------------------------------------------------------+

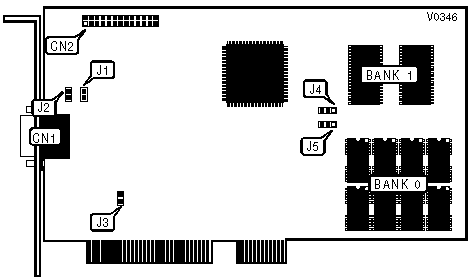

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| 15-pin analog | CN1 | Feature connector | CN2 |
| video port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | J4 | J5 |
|-------+------------+-----------+--------------+------------|
| 1MB | (8) 44256 | NONE | Pins 1 & 2 | Pins 1 & 2 |
| | | | closed | closed |
|-------+------------+-----------+--------------+------------|
| 2MB | (8) 44256 | (2) 16256 | Pins 2 & 3 | Pins 2 & 3 |
| | | | closed | closed |
|------------------------------------------------------------|
| Note:16256 chips must be installed by the manufacturer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| J1 | Closed |
|------------------------------+-----------------------------|
| J2 | Open |
|------------------------------+-----------------------------|
| J3 | Open |
+------------------------------------------------------------+
