# MONOLITHIC SYSTEMS, INC. (COLORADO MSI)
ULTRAVGA 452
Category Video
Video Type XVGA
Video Processor Chips & Technologies
Highest Resolution Supported 800 x 600
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512KB

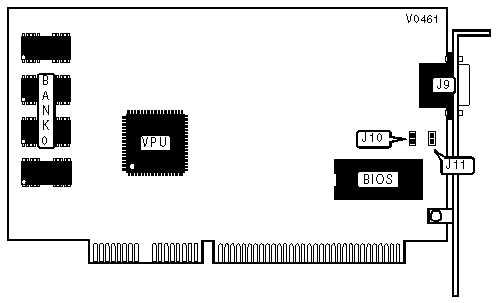

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | J9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ9 | J10 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 8-BIT VIDEO MODE |
|------------------------------------------------------------|
| Setting | J11 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
