# MATROX GRAPHICS, INC.
MARVEL/B (MM/VGA32K)
Category Sound, Video
Video Types Supported XVGA
Video Processor Tseng Laboratories ET4000
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1MB

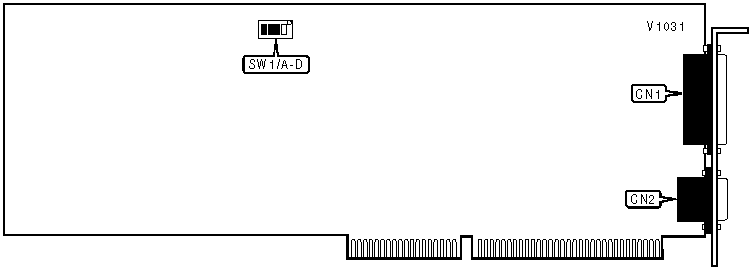

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------------+----------+-----------+----------|
| Audio/video input/output | CN1 | Video out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ONBOARD INTERRUPT CONFIGURATION |
|------------------------------------------------------------|
| Setting | Sw1/1 |
|------------------------------------+-----------------------|
| » | Disabled | Off |
|-------+----------------------------+-----------------------|
| | Enabled | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | SW1/2 | SW1/3 |
|-----------------------+------------------+-----------------|
| » | 250h | Off | Off |
|----+------------------+------------------+-----------------|
| | 290h | Off | On |
|----+------------------+------------------+-----------------|
| | 350h | On | Off |
|----+------------------+------------------+-----------------|
| | None | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ONBOARD VGA CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/4 |
|-------------------------------+----------------------------|
| Enabled | Off |
|-------------------------------+----------------------------|
| Disabled | On |
+------------------------------------------------------------+
