# MATROX GRAPHICS, INC.
MARVEL/B(MM/LC)
Category Sound, Video
Video Types Supported XVGA
Video Processor None
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type N/A
Maximum Onboard Memory N/A

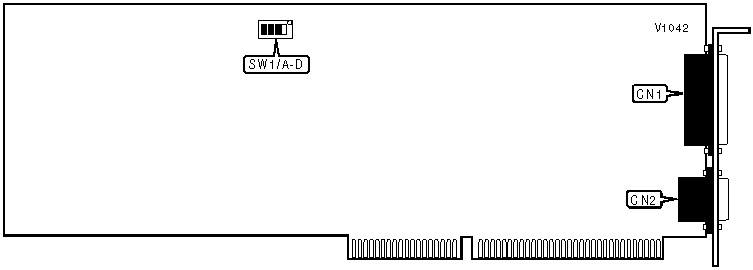

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------------+----------+-----------+----------|
| VGA feature connector, | CN1 | Video out | CN2 |
| audio/video input/output | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ONBOARD INTERRUPT CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/1 |
|------------------------------------+-----------------------|
| » | Disabled | Off |
|-------+----------------------------+-----------------------|
| | Enabled | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | SW1/2 | SW1/3 |
|----------------------+------------------+------------------|
| » | 250h | Off | Off |
|---+------------------+------------------+------------------|
| | 290h | Off | On |
|---+------------------+------------------+------------------|
| | 350h | On | Off |
|---+------------------+------------------+------------------|
| | None | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ONBOARD VGA CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/4 |
|-------------------------------+----------------------------|
| Enabled | Off |
|-------------------------------+----------------------------|
| Disabled | On |
+------------------------------------------------------------+
