# MODULAR CIRCUIT TECHNOLOGY
MCT-CGP
Category Video
Video Types Supported CGA, MGA
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8-bit ISA
Memory Type N/A
Maximum Onboard Memory N/A

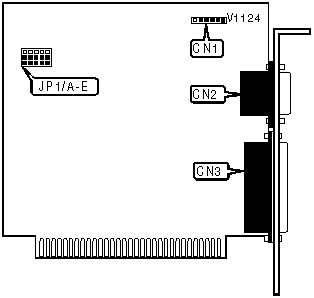

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| Light pen | CN1 | Parallel port | CN3 |
|----------------------+----------+---------------+----------|
| 15-pin analog video | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE |
|------------------------------------------------------------|
| Type | JP1/A |
|----------------------------+-------------------------------|
| » | Color | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Monochrome | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERNAL COLOR GRAPHICS |
|------------------------------------------------------------|
| Setting | JP1/D |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EMULATION MODE |
|------------------------------------------------------------|
| Setting | JP1/E |
|----------------------------+-------------------------------|
| » | Disabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRINTER PORT SELECT |
|------------------------------------------------------------|
| Address | JP1/B | JP1/C |
|------------------+--------------------+--------------------|
| » | LPT1(3CBh) | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | LPT2(378h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | LPT3(278h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
