       # OCEAN INFORMATION SYSTEMS, INC.

          VL-VGA-24/28 VER.B (REV. 1.0)

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              Cirrus Logic
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                32-bit VESA local bus
          Memory Type                  DRAM
          Maximum Onboard Memory       1MB

   IMG IMG 1


          +------------------------------------------------------------+

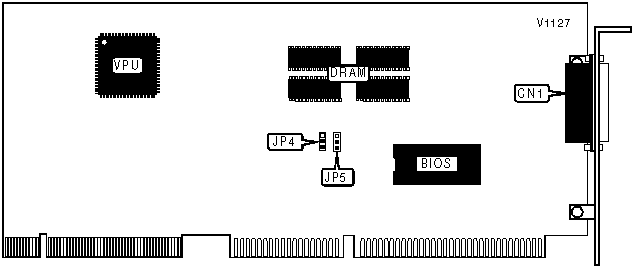

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose            |          Location          |
          |-------------------------------+----------------------------|
          | 15-pin analog video port      |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |           IRQ9             |              JP5              |
          |----------------------------+-------------------------------|
          | ยป |        Enabled         |       Pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          |   |        Disabled        |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                FACTORY CONFIGURED SETTINGS                 |
          |------------------------------------------------------------|
          |           Jumper           |            Setting            |
          |----------------------------+-------------------------------|
          |            JP4             |       Pins 1 & 2 closed       |
          |------------------------------------------------------------|
          | Note: JP4 controls wait state, settings unidentified       |
          +------------------------------------------------------------+
