# MIRO COMPUTER PRODUCTS, INC.
MIROVIDEO 12PD VL
Category Video
Video Types Supported XVGA
Video Processor Alliance ProMotion 3210
Highest Resolution Supported 1280 X 1024
Data Bus Type 32-bit VESA Local Bus
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

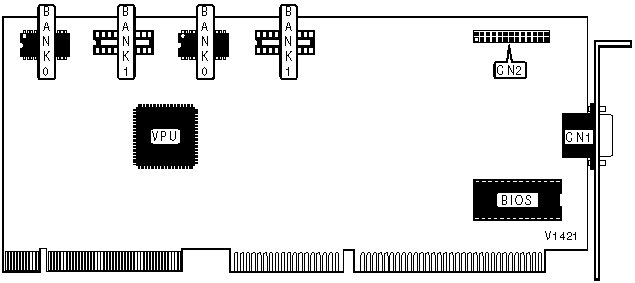

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Memory | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 1024K x 4 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (2) 1024K x 4 | (2) 1024K x 4 |
+------------------------------------------------------------+
