# MIRO COMPUTER PRODUCTS, INC.
MIRO 40PV VIDEO
Category Video
Video Types Supported XVGA
Video Processor Weitek P9100 & P9130
Highest Resolution Supported 1600 x 1280
Data Bus Type 32-bit PCI
Memory Type VRAM
Maximum Onboard Memory 4MB
IMG IMG 1
+------------------------------------------------------------+

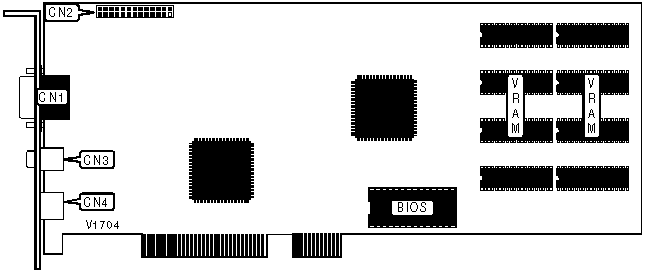

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| 15-pin analog | CN1 | Composite video | CN3 |
| video port | | in | |
|--------------------+----------+-----------------+----------|
| VGA feature | CN2 | S-video | CN4 |
| connector | | | |
+------------------------------------------------------------+
