# MIRO COMPUTER PRODUCTS, INC.
MIROVIDEO 20TD LIVE! VL
Category Video
Video Types Supported XVGA
Video Processor Tseng Labs ET4000/32p & VIPER
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit VESA Local Bus
Memory Type DRAM
Maximum Onboard Memory 2MB

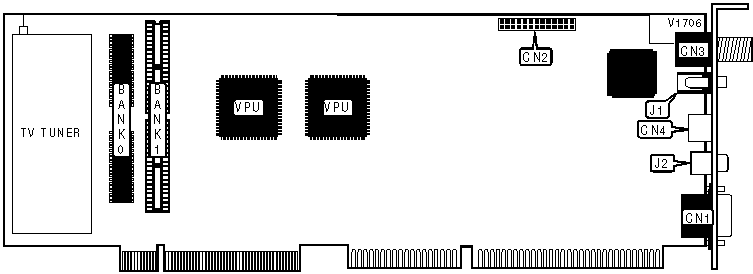

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| 15-pin analog | CN1 | S-video | CN4 |
| video port | | | |
|--------------------+----------+-----------------+----------|
| VESA feature | CN2 | Audio out | J1 |
| connector | | | |
|--------------------+----------+-----------------+----------|
| Antenna or cable | CN3 | Composite video | J2 |
| input | | in | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
