# ORCHID TECHNOLOGY
VIDIOLA PRO, VIDIOLA PREMIUM
Card Type Video card
Video Chip Set Orchid Technology
Maximum Video Memory 1.5MB DRAM
Video Types Supported VGA
Highest Resolution Supported 800 x 600
Data Bus 16-bit ISA

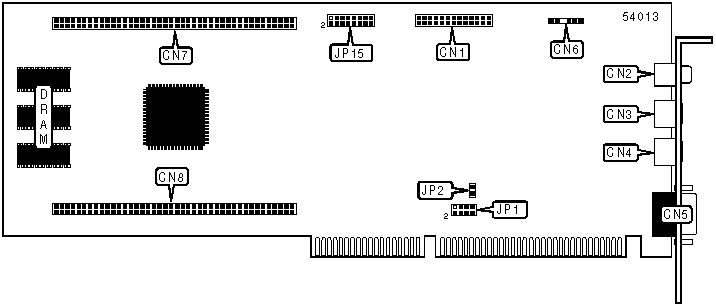

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Feature connector | CN1 | 15-pin analog video | CN5 |
| | | port | |
|--------------------+-------+-----------------------+-------|
| Composite Video in | CN2 | S-video 5-pin cable | CN6 |
| | | connector | |
|--------------------+-------+-----------------------+-------|
| S-video in | CN3 | Daughtercard | CN7 |
| | | connector | |
|--------------------+-------+-----------------------+-------|
| VGA in | CN4 | Daughtercard | CN8 |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA COMPATIBILITY SELECTION |
|------------------------------------------------------------|
| Setting | JP15 |
|----------------------------+-------------------------------|
| » | Normal VGA operation | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Option 1 | Pins 3 & 4, 5 & 6 closed |
|---+------------------------+-------------------------------|
| | Option 2 | Pins 3 & 4, 7 & 8 closed |
|---+------------------------+-------------------------------|
| | Option 3 | Pins 3 & 4, 9 & 10 closed |
|---+------------------------+-------------------------------|
| | Option 4 | Pins 3 & 4, 11 & 12 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP2 |
|-------------------------------+----------------------------|
| » | 700h | Open |
|------+------------------------+----------------------------|
| | 600h | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP1 |
|-------------------------+----------------------------------|
| | IRQ 5 | Pins 15 & 16 closed |
|---+---------------------+----------------------------------|
| | IRQ 6 | Pins 13 & 14 closed |
|---+---------------------+----------------------------------|
| | IRQ7 | Pins 11 & 12 closed |
|---+---------------------+----------------------------------|
| » | IRQ 10 | Pins 9 & 10 closed |
|---+---------------------+----------------------------------|
| | IRQ 11 | Pins 7 & 8 closed |
|---+---------------------+----------------------------------|
| | IRQ 12 | Pins 5 & 6 closed |
|---+---------------------+----------------------------------|
| | IRQ 14 | Pins 3 & 4 closed |
|---+---------------------+----------------------------------|
| | IRQ 15 | Pins 1 & 2 closed |
+------------------------------------------------------------+
IMG IMG 2
Vidiola Premium Daughtercard
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Daughtercard | CN7 | Daughtercard | CN8 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSOR BASE ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP4 | JP3 |
|--------------------+-------------------+-------------------|
| 380-387h | Closed | Closed |
|--------------------+-------------------+-------------------|
| 3A0-3A7h | Closed | Open |
|--------------------+-------------------+-------------------|
| 3CO-3C7h | Open | Closed |
|--------------------+-------------------+-------------------|
| 3EO-3E7h | Open | Open |
+------------------------------------------------------------+
IMG IMG 3
Vidiola S-Video Sub card
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------+-------+------------------------------+-------|
| S-video in | CN3 | S-video 5-pin cable | CN6A |
| | | connector | |
|-------------+-------+------------------------------+-------|
| S-video out | CN4 | | |
+------------------------------------------------------------+
