# MIRO COMPUTER PRODUCTS, INC.
MIROCRYSTAL DVD
Card Type DVD drive controller
Chip Set SIS
Maximum Onboard Memory 4MB
Maximum Resolution 1024 x 1280
Data Bus 32-bit PCI
Card Size Full-length, full-height card
IMG IMG 1
+------------------------------------------------------------+

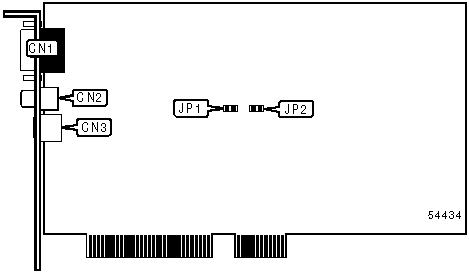

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Video port | CN1 | S-Video output | CN3 |
|-----------------------+-------+--------------------+-------|
| Composite output | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| PAL video output enabled | JP1 | Closed |
|----------------------------------------+-------+-----------|
| PAL video output disabled | JP1 | Open |
|----------------------------------------+-------+-----------|
| NTSC video output enabled | JP2 | Closed |
|----------------------------------------+-------+-----------|
| NTSC video output disabled | JP2 | Open |
+------------------------------------------------------------+
