# MIRO COMPUTER PRODUCTS, INC.
MIROMEDIA 3D, MIROMEDIA 3D TV
Card Type Video card
Chip Set S3
Maximum Onboard 2MB
Memory
Maximum Resolution 1024 x 768
I/O Options Composite video out, video port, audio out
Data Bus 32-bit PCI
Card Size Full-length, full-height card

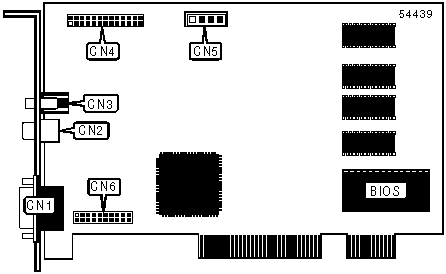

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Video port | CN1 | Mother to daughter | CN4 |
| | | board connector | |
|-------------------+-------+------------------------+-------|
| Composite video | CN2 | Internal audio output | CN5 |
| output connector | | | |
|-------------------+-------+------------------------+-------|
| Audio output | CN3 | Mother to daughter | CN6 |
| connector | | board connector | |
|------------------------------------------------------------|
| Note: The exact size of CN4 and CN6 is unidentified. |
+------------------------------------------------------------+

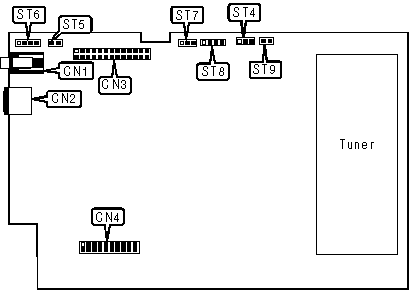

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Antenna input | CN1 | Composite video | ST5 |
| | | input | |
|-----------------------+-------+--------------------+-------|
| S-video input | CN2 | Parallel connector | ST6 |
|-----------------------+-------+--------------------+-------|
| Daughter to | CN3 | Control bus | ST7 |
| motherboard connector | | connector | |
|-----------------------+-------+--------------------+-------|
| Daughter to | CN4 | Audio input | ST8 |
| motherboard connector | | | |
|-----------------------+-------+--------------------+-------|
| Intermediate | ST4 | Tuner signal | ST9 |
| frequency input | | output | |
|------------------------------------------------------------|
| Note: The exact size of CN3 and CN4 is unidentified. |
+------------------------------------------------------------+
