# MULTIWAVE INNOVATION, INC.
MOVIEWAVE HOMEVIDEO
Card Type Video capture board
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported Unidentified
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

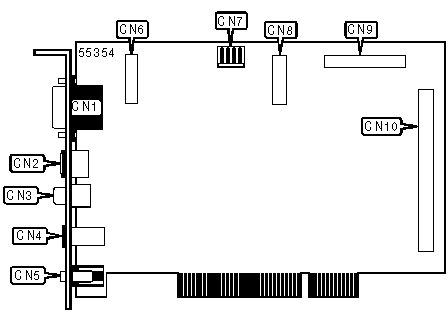

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| TV cable connector | CN1 | VGA to TV module | CN6 |
| | | interface connector | |
|--------------------+-------+-----------------------+-------|
| S-video in | CN2 | TV tuner input | CN7 |
| | | connector | |
|--------------------+-------+-----------------------+-------|
| Composite video in | CN3 | VGA to TV module | CN8 |
| | | interface connector | |
|--------------------+-------+-----------------------+-------|
| 5V DC power | CN4 | M-JPEG module | CN9 |
| | | interface connector | |
|--------------------+-------+-----------------------+-------|
| Audio in | CN5 | M-JPEG module | CN10 |
| | | interface connector | |
+------------------------------------------------------------+
