# NEWCOM, INC.
CINEMA II PLUS DVD ADAPTER
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA, XVGA
Highest Resolution Supported 720 x 480
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

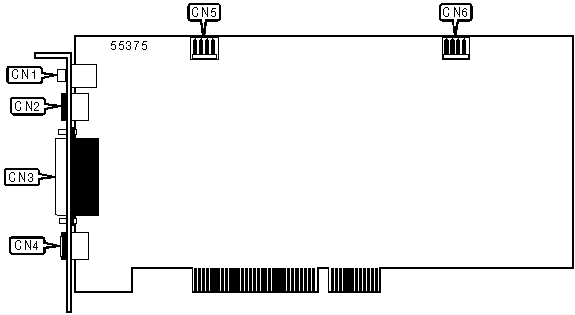

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------------+-------+------------+-------|
| Speaker/Line out | CN1 | Video in | CN4 |
| | | (VGA) | |
|-------------------------------+-------+------------+-------|
| S/PDIF/S-video/composite | CN2 | CD/MPEG | CN5 |
| video cable connector | | audio out | |
|-------------------------------+-------+------------+-------|
| 15-pin analog video port | CN3 | CD-ROM | CN6 |
| | | Audio in | |
+------------------------------------------------------------+
