# PINE TECHNOLOGY
PT-528
Category Video
Video Type VGA
Video Processor Cirrus Logic
Highest Resolution Supported 1280 x 1024
Data Bus Type VESA Local Bus
Memory Type VRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

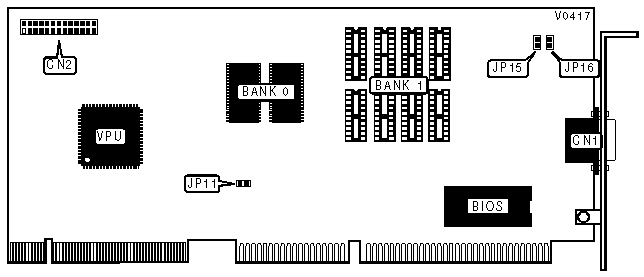

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA Feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ9 | JP11 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PERFORMANCE SETTINGS |
|------------------------------------------------------------|
| Mode | JP15 & JP16 |
|-----------------------------+------------------------------|
| » | Normal | Open |
|---+-------------------------+------------------------------|
| | High | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+------------------------+----------------------|
| 1MB | (2) 256K x 16 | NONE |
|------------+------------------------+----------------------|
| 2MB | (2) 256K x 16 | (8) 256 x 4 |
+------------------------------------------------------------+
