# PINE TECHNOLOGY
PT-526
Category Video
Video Types Supported XVGA
Video Processor Cirrus Logic CL-GD5426
Highest Resolution Supported 1280 X 1024
Data Bus Type VESA LOCAL BUS
Memory Type DRAM
Maximum Onboard Memory 2048KB

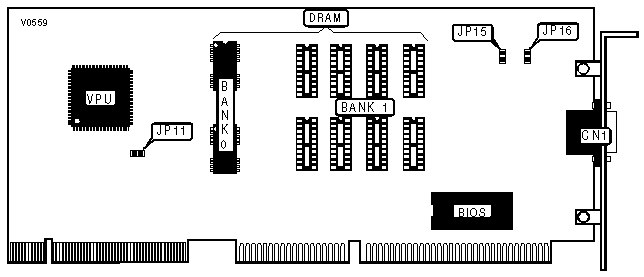

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IRQ 9 SELECT |
|------------------------------------------------------------|
| IRQ 9 | JP11 |
|-------------------------------+----------------------------|
| Enabled | Closed |
|-------------------------------+----------------------------|
| Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HIGH PERFORMANCE SELECT |
|------------------------------------------------------------|
| High Performance Mode | JP15 | JP16 |
|------------------------------+--------------+--------------|
| Enabled | Closed | Closed |
|------------------------------+--------------+--------------|
| Disabled | Open | Open |
+------------------------------------------------------------+
