# PIXELWORKS, INC.
ULTRA CLIPPER/MCA (UM1280), ULTRA CLIPPER/MCA (UM1024)
Category Video
Video Types XVGA
Supported
Video Processor Pixelworks, Inc.(exact location
unidentified)
Highest Resolution 1280 x 1024
Supported
Data Bus Type (2) 16-bit MCA
Memory Type DRAM
Maximum Onboard 1.5MB
Memory

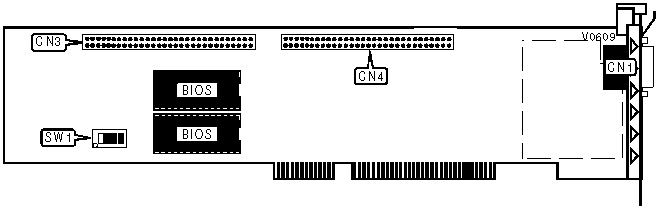

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+---------------+-----------|
| 15-pin analog video | CN1 | Daughterboard | CN3 & CN4 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGUERD - DO NOT ALTER |
|------------------------------------------------------------|
| Switch | Position |
|-----------------------------+------------------------------|
| SW1/1 | On |
|-----------------------------+------------------------------|
| SW1/2 | Off |
|-----------------------------+------------------------------|
| SW1/3 | Off |
|-----------------------------+------------------------------|
| SW1/4 | Off |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| VGA pass-through port | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR SYNC MODE SELECTION |
|------------------------------------------------------------|
| » Mode | SW2/1 | SW2/2 | SW2/3 | SW2/4 |
|------------+-----------+-----------+-----------+-----------|
| » | 3 | On | On | Off | Off |
|----+-------+-----------+-----------+-----------+-----------|
| » | 4 | On | Off | Off | Off |
|----+-------+-----------+-----------+-----------+-----------|
| » | 5 | Off | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| These two cards are attached at the corners and must be |
| installed in two adjacent slots simultaneously. When |
| viewed from the backplate end, the card on the left is the |
| card pictured above. |
+------------------------------------------------------------+
