# PROLINK COMPUTER INC.
MVGA-AVGA4VL1
Category Video
Video Types Supported XVGA
Video Processor Cirrus Logic
Highest Resolution Supported 1024 x 768
Data Bus Type VESA local bus
Memory Type DRAM
Maximum Onboard Memory 3048KB

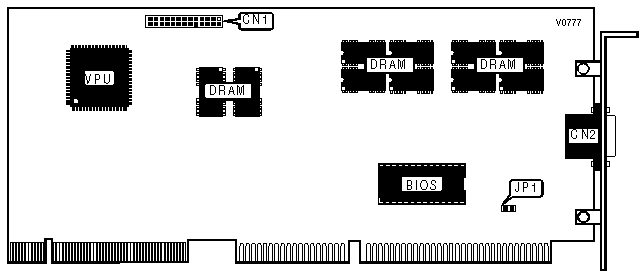

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------+----------+------------------------+----------|
| VGA feature | CN1 | 15-pin analog video | CN2 |
| connector | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT IRQ9 SELECT |
|------------------------------------------------------------|
| » Setting | JP1 |
|---------------------------------+--------------------------|
| » | Enabled | Closed |
|---+-----------------------------+--------------------------|
| » | Disabled | Open |
+------------------------------------------------------------+
