# PIXELWORKS, INC.
WW1280, WW1280/PLUS
Category Video
Video Types Supported XVGA
Video Processor Unidentified
Highest Resolution Supported 1280 x 1024
Data Bus Type 16-bit ISA
Memory Type Unidentified
Maximum Onboard Memory Unidentified

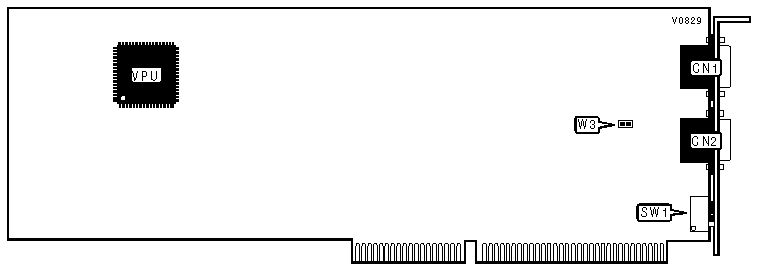

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| 15-pin analog | CN1 | 9-pin VGA | CN2 |
| video port | | pass-through port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 3/5 WIRE MONOCHROME VIDEO SIGNAL SELECT |
|------------------------------------------------------------|
| Setting | W3 |
|------------------------------------------------+-----------|
| » | 5-wire external separate sync video signal | Open |
|---+--------------------------------------------+-----------|
| | 3-wire internal sync video signal | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA PASS-THROUGH |
|------------------------------------------------------------|
| » Setting | SW1/1 |
|---------------------------------------------------+--------|
| » | VGA pass-through or dual monitor mode enabled | Off |
|---+-----------------------------------------------+--------|
| » | On-board VGA enabled | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS |
|------------------------------------------------------------|
| » Address | SW1/3 | SW1/4 |
|----------------------+------------------+------------------|
| » | 230h | Off | Off |
|----+-----------------+------------------+------------------|
| » | 240h | Off | On |
|----+-----------------+------------------+------------------|
| » | 330h | On | Off |
|----+-----------------+------------------+------------------|
| » | 340h | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW1/2 | Off |
+------------------------------------------------------------+
