# QDI COMPUTER, INC.
CL543XPCI/SMT, 5430 PCI/SMT
Category Video
Video Types Supported XVGA
Video Processor Cirrus Logic, Inc.
Highest Resolution Supported 1280 x 1024
Data Bus Type PCI
Memory Type DRAM
Maximum Onboard Memory 2MB

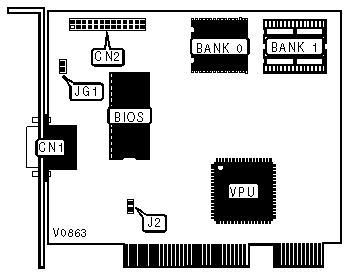

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| 15-pin analog | CN1 | Green PC feature | JG1 |
| video port | | connector | |
|---------------+----------+----------------------+----------|
| VESA feature | CN2 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IRQ9 |
|------------------------------------------------------------|
| Setting | J2 |
|---------------------------------+--------------------------|
| » | Enabled | Closed |
|---+-----------------------------+--------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| » | 1MB | (2) 256K x 16 | None |
|---+--------------+--------------------+--------------------|
| | 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
