# PROLINK COMPUTER, INC.
MVGA-TW32PVL
Category Video
Video Types Supported XVGA
Video Processor Tseng Laboratories, Inc.
Highest Resolution Supported 1280 x 1024
Data Bus Type VESA local bus
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

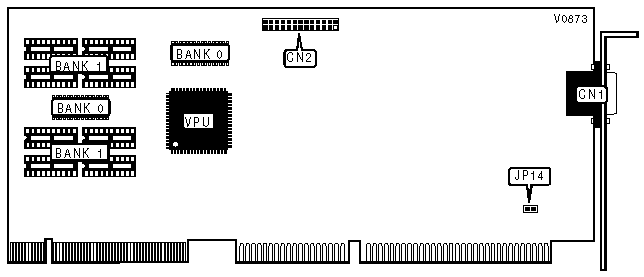

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IRQ9 |
|------------------------------------------------------------|
| Setting | JP14 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| » | 1MB | (2) 512K x 8 | None |
|---+--------------+--------------------+--------------------|
| | 2MB | (2) 512K x 8 | (8) 256K x 4 |
+------------------------------------------------------------+
