# QDI COMPUTER, INC.
TVGA-9000
Category Video
Video Types Supported XVGA
Video Processor Trident 9000
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512MB

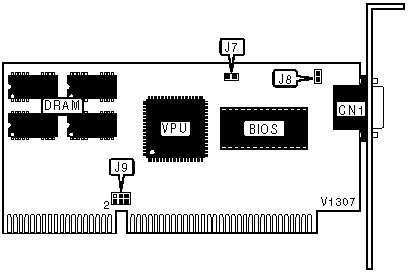

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA SCAN RATE CONFIGURATION |
|------------------------------------------------------------|
| Rate | J7 |
|----------------------------------+-------------------------|
| » | <48.7KHz | Closed |
|-----+----------------------------+-------------------------|
| | 48.7KHz | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS AUTODETECT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J8 |
|-------------------------------+----------------------------|
| Enabled | Open |
|-------------------------------+----------------------------|
| Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA ADAPTER CONFIGURATION |
|------------------------------------------------------------|
| Setting | J9 |
|--------------------------+---------------------------------|
| » | 16-bit | Open |
|---+----------------------+---------------------------------|
| | 8-bit | Pins 1 & 2, 3 & 4, 5 & 6 closed |
+------------------------------------------------------------+
