# RELIALOGIC CORPORATION PRIVATE, LTD.
VP39C
Category Video
Video Types Supported XVGA
Video Processor Trident 8900D
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1MB
IMG IMG 1
+------------------------------------------------------------+

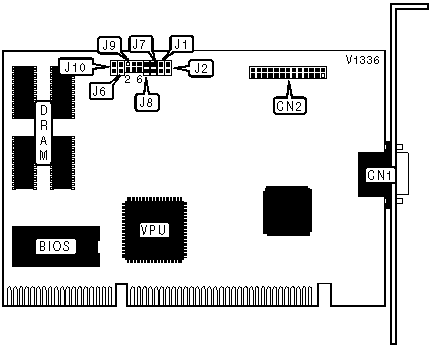

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FIRST ZERO WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|------------------------------------+-----------------------|
| » | Enabled | Closed |
|--------+---------------------------+-----------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECOND ZERO WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Setting | J1 |
|-----------------------------------+------------------------|
| » | Enabled | Open |
|--------+--------------------------+------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCAN RATE MODE CONFIGURATION |
|------------------------------------------------------------|
| Mode | J7 |
|------------------------------------+-----------------------|
| » | Interlaced | Closed |
|----+-------------------------------+-----------------------|
| | Non-interlaced | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTODETECT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J8 |
|---------------------------------+--------------------------|
| » | Enabled | Open |
|----+----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ISA BUS SLOT SELECTION |
|------------------------------------------------------------|
| Bus | J6 | J10 | J9 |
|--------+--------+--------+---------------------------------|
| 16-bit | Open | Closed | Pins 1 & 2, 3 & 4, 5 & 6 open |
|--------+--------+--------+---------------------------------|
| 8-bit | Closed | Open | Pins 1 & 2, 3 & 4, 5 & 6 closed |
+------------------------------------------------------------+
