# PROGEN TECHNOLOGY, INC.
GOLD 64V+ PCI (V.1.1)
Card Type Video
Chip Set S3, Inc. Trio64V+
Maximum Onboard Memory 2MB DRAM (EDO)
Data Bus 32-bit PCI
Video Types Supported XVGA
Highest Resolution Supported 1600 x 1200

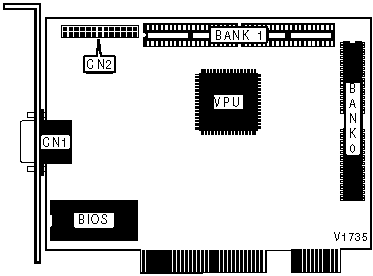

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | Video feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------------+-------------------+--------------------|
| 1MB | (2) 256K x 16 | NONE |
|-------------------+-------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
