# QUADRANT COMPONENTS, INC.
STAR 100
Card Type Video card
Video Chip Set Trident
Highest Resolution Supported 1600 x 1200
Maximum Video Memory 2MB VRAM
Data Bus 32-bit PCI
Video Types Supported XVGA

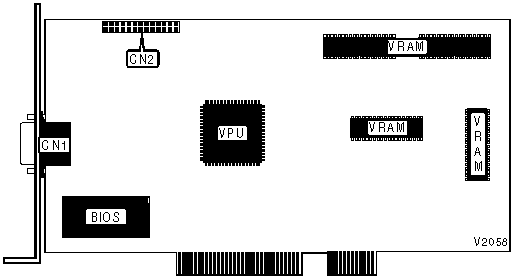

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
