# PARADISE SYSTEMS, INC.
MODULAR GRAPHICS CARD (VER. 1.0)
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 640 x 400
Maximum Video Memory 16KB RAM (Type unidentified)
Data Bus 8-bit ISA
Video Types Supported CGA

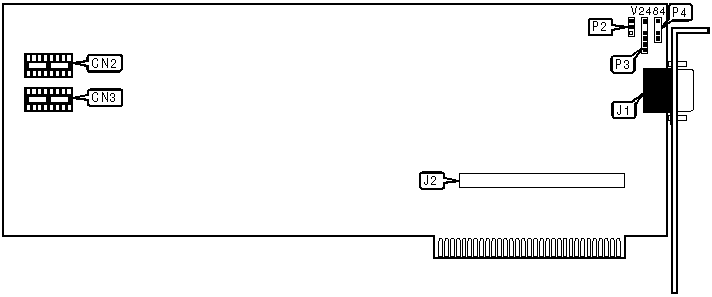

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Back module | J2 | Light pen connector | P3 |
| connector | | | |
|----------------------+-------+---------------------+-------|
| 9-pin digital video | J1 | RF connector | P4 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION |
|------------------------------------------------------------|
| Type | CN2 | CN3 | P2 |
|---------------+---------------+---------------+------------|
| TTL (IBM) | Installed | Not Installed | N/A |
| Monochrome | | | |
|---------------+---------------+---------------+------------|
| RGB color | Not Installed | Installed | N/A |
|---------------+---------------+---------------+------------|
| Composite | Not Installed | Installed | Pins 1 & 2 |
| color | | | closed |
|---------------+---------------+---------------+------------|
| Composite B&W | Not Installed | Installed | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
